Fichas: SEGA

Modelos Disponibles:

Ficha: Sega Master System I  (1986) Ficha: Sega Master System II  (1990) Ficha: Sega Mega Drive I (1990) Ficha: Sega Mega Drive II (1993)

Fichas:

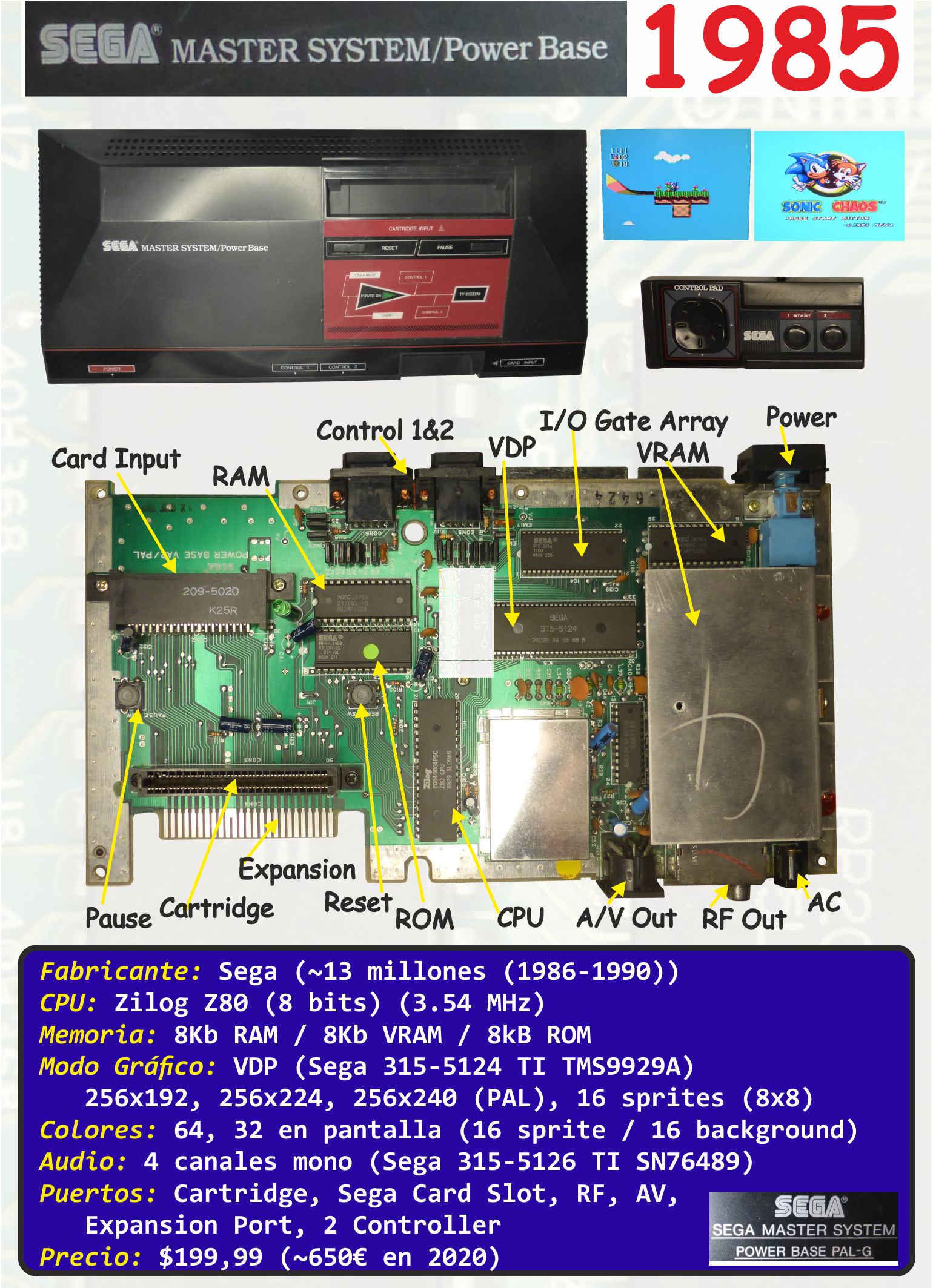

Sega Master System I (1986)

Modelo: Ficha: Sega Master System I  (1986)
Fabricante:Sega
Año:1986
Producción:~13 millones (1986-1990)
CPU:Zilog Z80 (3.54 MHz) (8 bits)
RAM:8Kb (VRAM: 16Kb
ROM:8-256Kb (según cartucho)
Modo Gráfico:VDP (Sega 315-5124 TI TMS9929A) 256x192, 256x224, 256x240 (PAL), 16 sprites (8x8)
Colores:64 colores, 32 en pantalla (16 sprite / 16 background)
Almacenamiento:Cartuchos / Sega Cards
Audio:4 canales mono (Sega 315-5126 TI SN76489)
Puertos:Cartridge, Sega Card Slot, RF, AV, Expansion Port, 2 Controller
Batería:9V DC

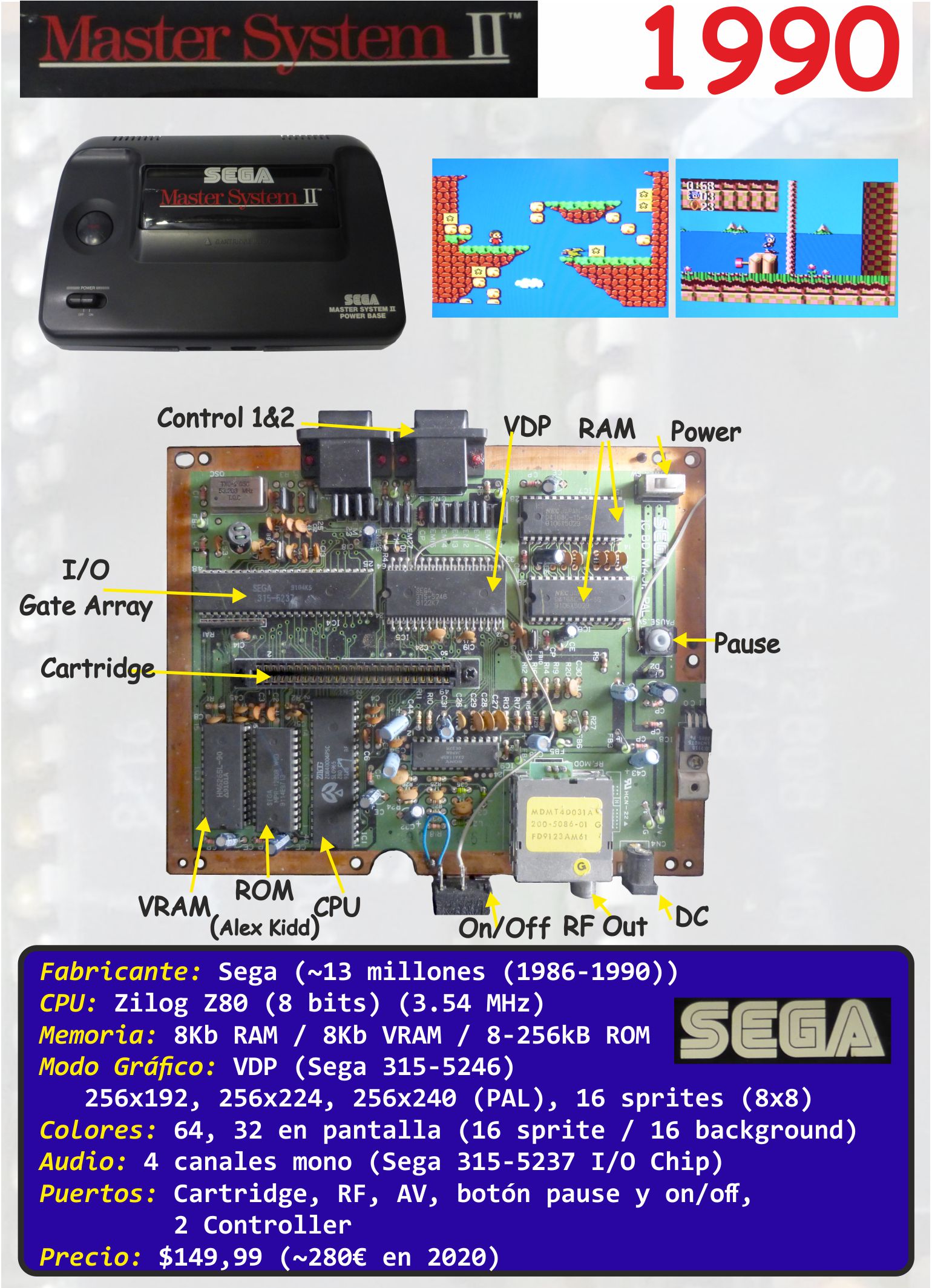

Sega Master System II (1990)

Modelo: Ficha: Sega Master System II  (1990)
Fabricante:Sega
Año:1990
CPU:Zilog Z80 (3.54 MHz) (8 bits)
RAM:8Kb (VRAM: 16Kb
ROM:8-256Kb (según cartucho)
Modo Gráfico:VDP (Sega 315-5246) 256x192, 256x224, 256x240 (PAL), 16 sprites (8x8)
Colores:64, 32 en pantalla (16 sprite / 16 background)
Almacenamiento:Cartuchos
Audio:4 canales mono (Sega 315-5237 I/O Chip)
Puertos:Cartridge, RF, AV, botón pause y on/off, 2 Controller
Batería:9V DC

Sega Mega Drive I (1990)

Modelo: Ficha: Sega Mega Drive I (1990)
Fabricante:Sega
Año:1990
Producción:~31 millones 1988-1995
CPU:Motorola 68000 (7.61 Mhz) (16 bits)
RAM:64Kb (VRAM: 64Kb
ROM:2Kb
Modo Gráfico:VDP (SEGA 315-5313A) 320x224, 256x224, 320x240 (PAL), 80/64 sprites
Colores:512, 61 en pantalla
Almacenamiento:Cartuchos
Audio:8 bits, 6 canales FM (Yamaha YM2512), 4 canales PSG (TI SN76489)
Puertos:Cartridge, DIN8 RGB/Audio Mono/Video, RF, audio out stereo, bus expansión, 2 Controller
Batería:9V-10V DC

Sega Mega Drive II (1993)

Modelo: Ficha: Sega Mega Drive II (1993)
Fabricante:Sega
Año:1993
Producción:1993-1995
CPU:Motorola 68000 (7.61 Mhz) (16 bits)
RAM:64Kb (VRAM: 64Kb
ROM:2Kb
Modo Gráfico:VDP (SEGA 315-5660) 320x224, 256x224, 320x240 (PAL), 80/64 sprites
Colores:512, 61 en pantalla
Almacenamiento:Cartuchos
Audio:8 bits, 6 canales FM (Yamaha Ym3438 FM), 4 canales PSG (TI 76489)
Puertos:Cartridge, Mini-DIN9 RGB/Audio Stereo/Video, bus expansión, 2 Controller
Batería:9V-10V DC
